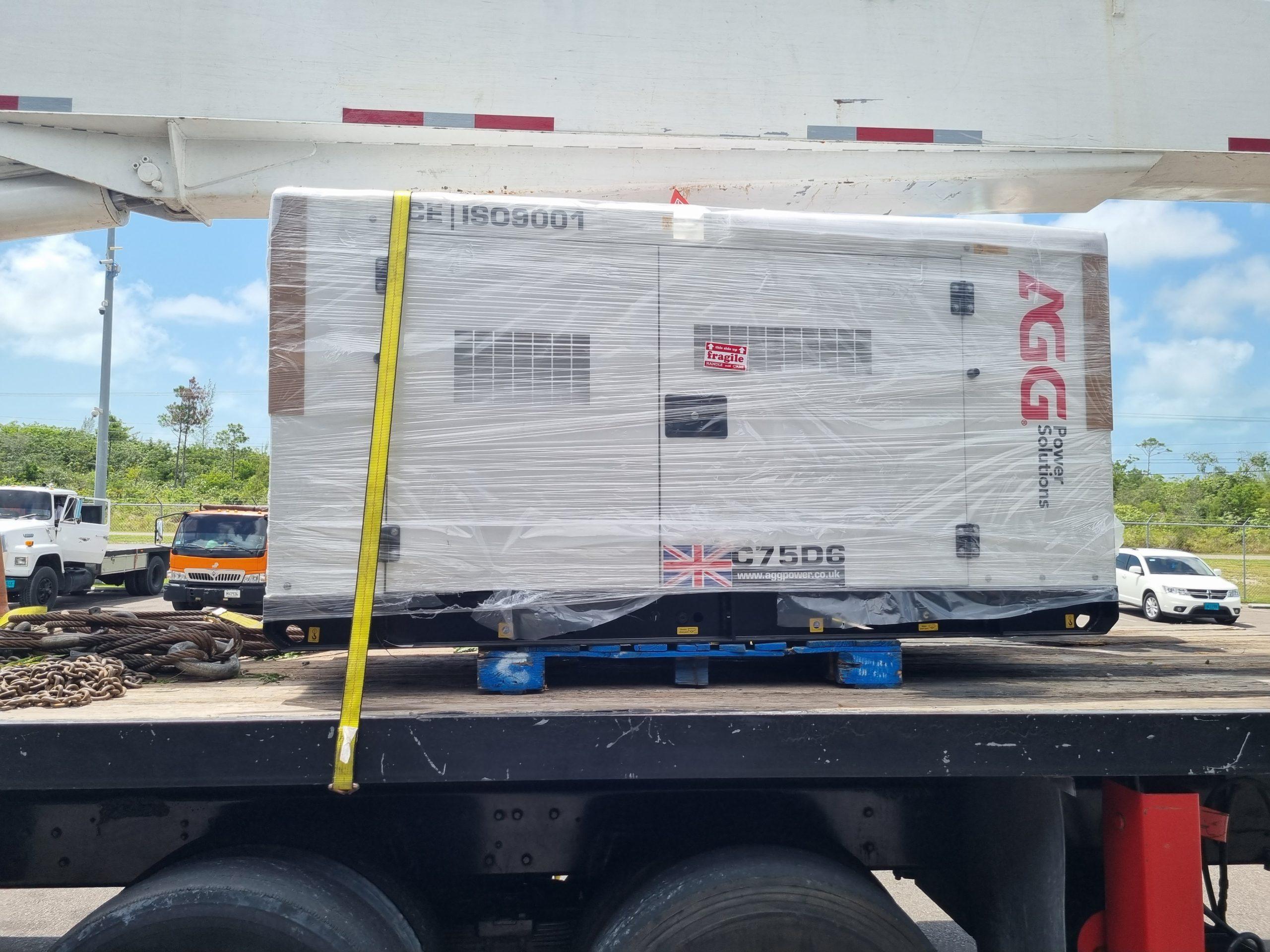

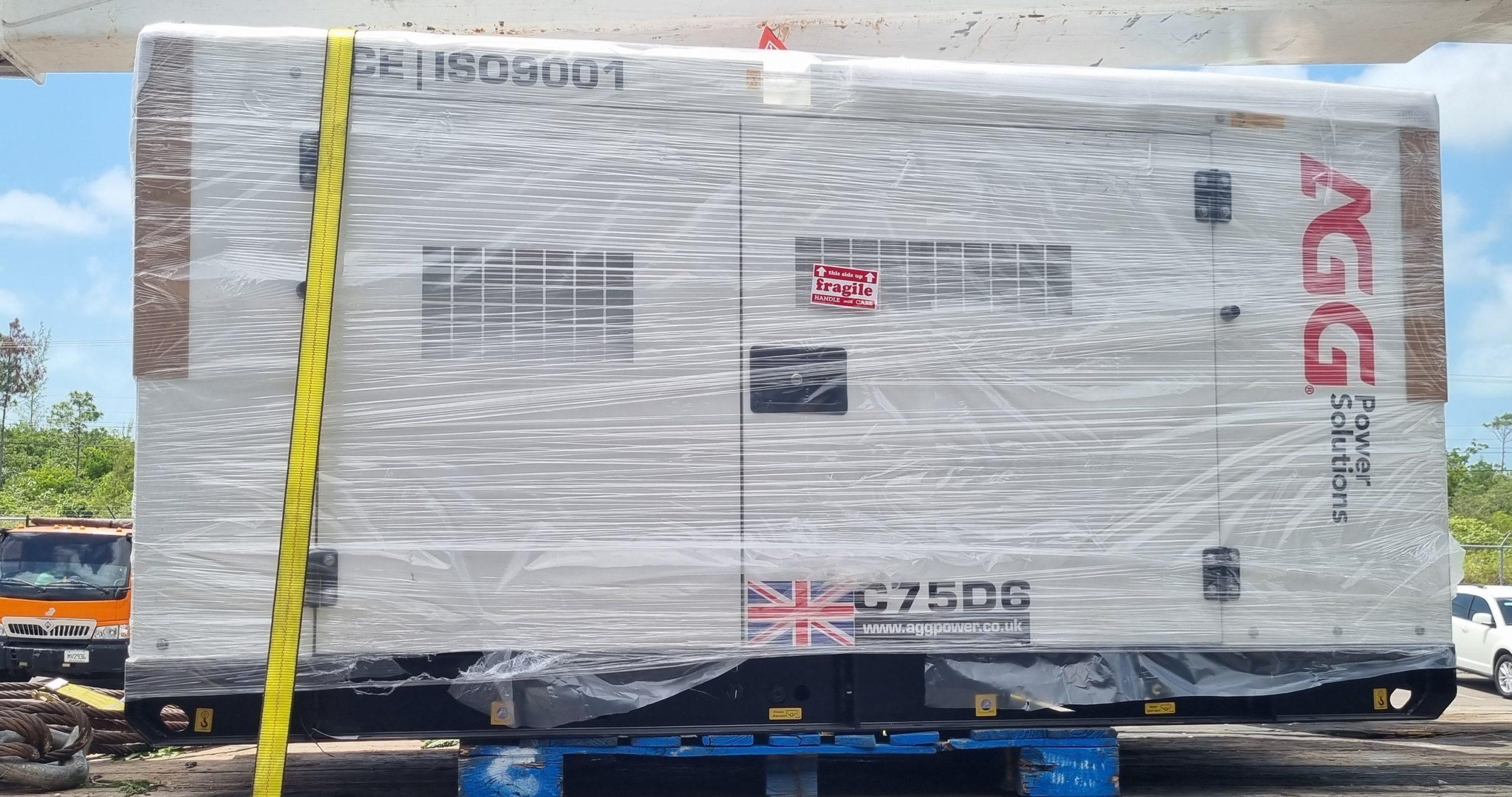

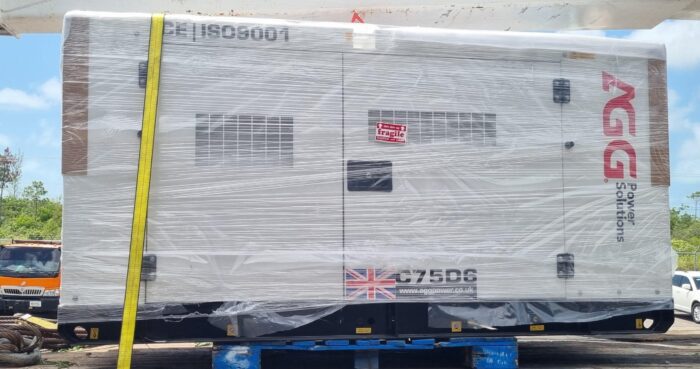

AGG C75D6-60Hz Diesel Generator

100% DESIGNED, ENGINEERED, AND ASSEMBLED IN ISO9001 & CE CERTIFIED FACILITIES

🔋 Power Ratings & Reliability

The AGG C75D6-60Hz is a rugged, industrial-grade diesel generator built for demanding standby and prime power applications. With a power rating of 60kW (75kVA), 3-phase output, and a 0.8 power factor at 60Hz, this unit delivers consistent performance at 208/120V.

• Engine: Cummins 4BTA3.9-G2, 1800RPM, turbocharged and aftercooled
• Governor: Electronic isochronous for precise speed control
• Cooling System: Industrial-grade with fan guards and coolant drain extension

⚙️ Premium Alternator

Equipped with the Leroy Somer TAL-A42-H alternator, this generator ensures clean, stable power output and long-term durability.

• 12-lead brushless design
• Thermo-magnetic switch protection
• Skewed rotor and 2/3 pitch winding for harmonic suppression
• Class H insulation with drip-proof, self-ventilated housing
• Electronic automatic voltage regulation (AVR)

🧠 Advanced Digital Controller

Control and monitor your generator with the Deep Sea Electronics DSE6020 controller—UL listed and packed with intelligent features.

• Microprocessor-based with dual-core processing and extended memory
• Large 4-line backlit LCD display with multilingual support
• Manual, Test, and Auto modes with 2-wire remote start/stop
• 250-event history log and 50+ configurable alarms
• Automatic shutdowns for voltage, frequency, speed, temperature, oil pressure, and coolant level

⛽ Fuel Tank Options

Choose between two integral metallic fuel tank configurations for daily autonomy:

• 36-Gallon Tank: 10 hours @ 75% PRP, 8 hours @ 100% PRP
• 26-Gallon Tank: 7 hours @ 75% PRP, 6 hours @ 100% PRP
• Electronic fuel level sender and visual gauge
• Programmable low/high-level alarms and shutdowns

🔩 Fully Packaged for Versatility

The AGG C75D6 is fully packaged and ready for most standby and prime power applications, with a robust mechanical and electrical layout.

• 7-gauge heavy-duty welded steel skid
• Compartmentalized master cabinet with vertical conduit access
• Main line breaker, 3-pole, set-mounted and wired
• Heavy-duty AVMs isolate engine, radiator, and alternator from frame
• Electrolyte-charged battery with rack, cables, and rubber-booted terminals
• Oil drain extension with in-line valve

✅ Engineered for Excellence

• Each unit load-bank tested in ISO9001-certified facilities
• International warranty: 2 years or 2000 hours (T&C apply)
• Accepts 100% rated load in one step (NFPA110 compliant)
• Meets ISO8528-5 class G-2 for transient response
• Compliant with ISO, EN, NEMA, NEC, and IEC standards
• NFPA 37 and NFPA Type 10 Level 1 capable (with accessories)

📦 What’s Included

• AGG C75D6 Generator Unit
• Cummins Engine & Leroy Somer Alternator
• DSE6020 Digital Controller
• Fuel Tank (36 or 26 Gal)
• Battery, filters, silencer-ready exhaust, and manuals

📞 Order Now

Static Pulse Electrical offers full-service generator imports and installation across The Bahamas. Contact us today to secure your AGG C75D6 and enjoy reliable power with expert support.

Phone: +1 242 326 1222 / +1 242 807 9194
Email: contact@powerglowelectrical.com
