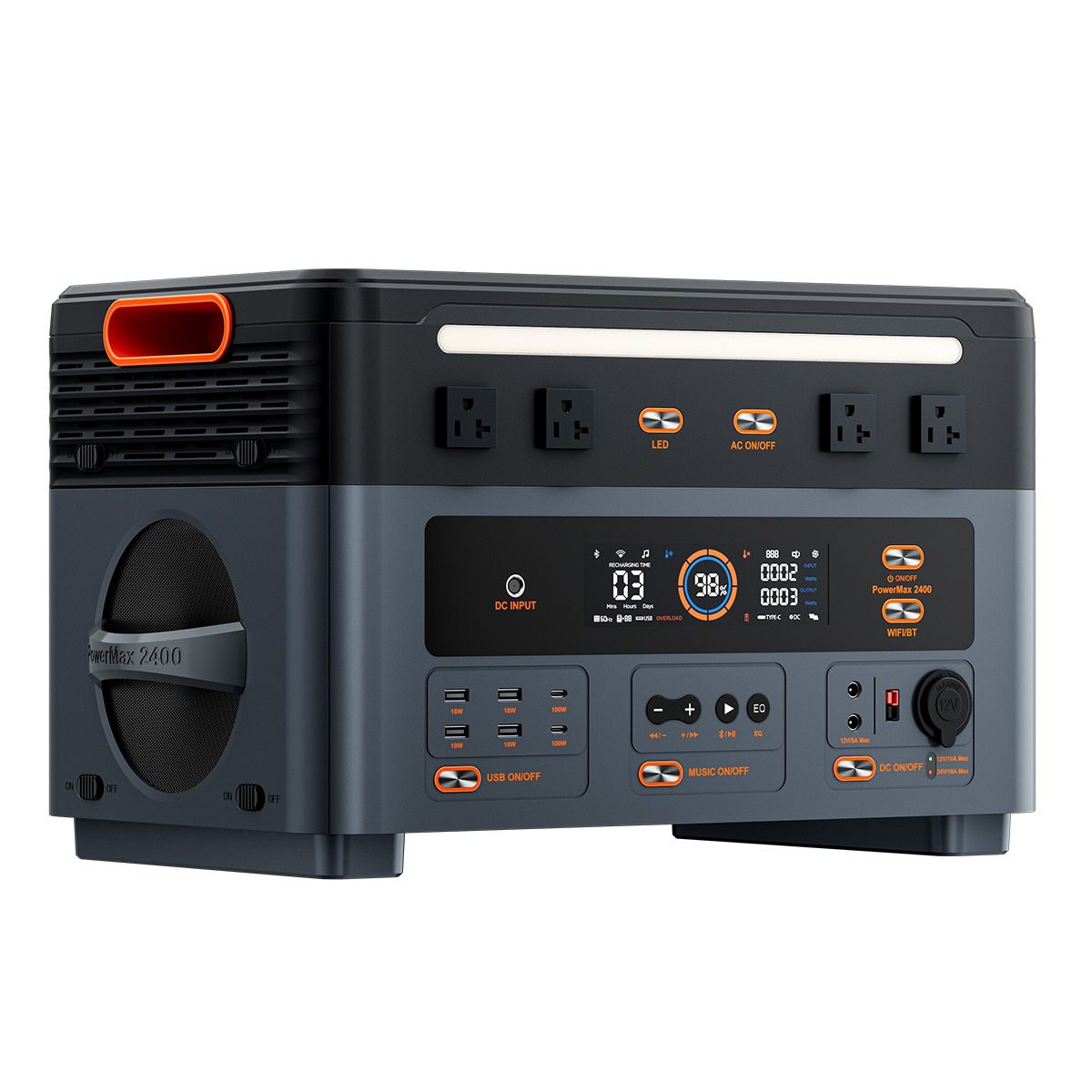

Oscal PowerMax 2400W

Oscal’s PowerMax 2400 is a versatile and reliable power solution for home backup, outdoor adventures, and emergency preparedness.
Featuring a powerful 1,872Wh battery with an expandable capacity of up to 20,592Wh using additional batteries (sold separately), it ensures long-lasting power whenever you need it.

Its innovative cableless stacking connection provides a space-saving, clean, and reliable setup. Delivering 2400W of pure sine wave output (4800W surge), the PowerMax 2400 can handle 99% of home appliances, making it ideal for camping, blackouts, and off-grid living. Stay powered anywhere, anytime—with a 5-year warranty included.

Features

1. 1872Wh Capacity, 2400W, 120V Output
With 1872Wh capacity and 2400W output, the PowerMax 2400 powers 99% of appliances, making it ideal for camping, emergency blackouts, and off-grid projects.

2. Expandable Capacity
Equipped with a powerful 1,872Wh battery, the PowerMax 2400 can expand up to 20,592Wh with 10× BP2400 additional batteries, ensuring reliable and long-lasting energy for all your needs.

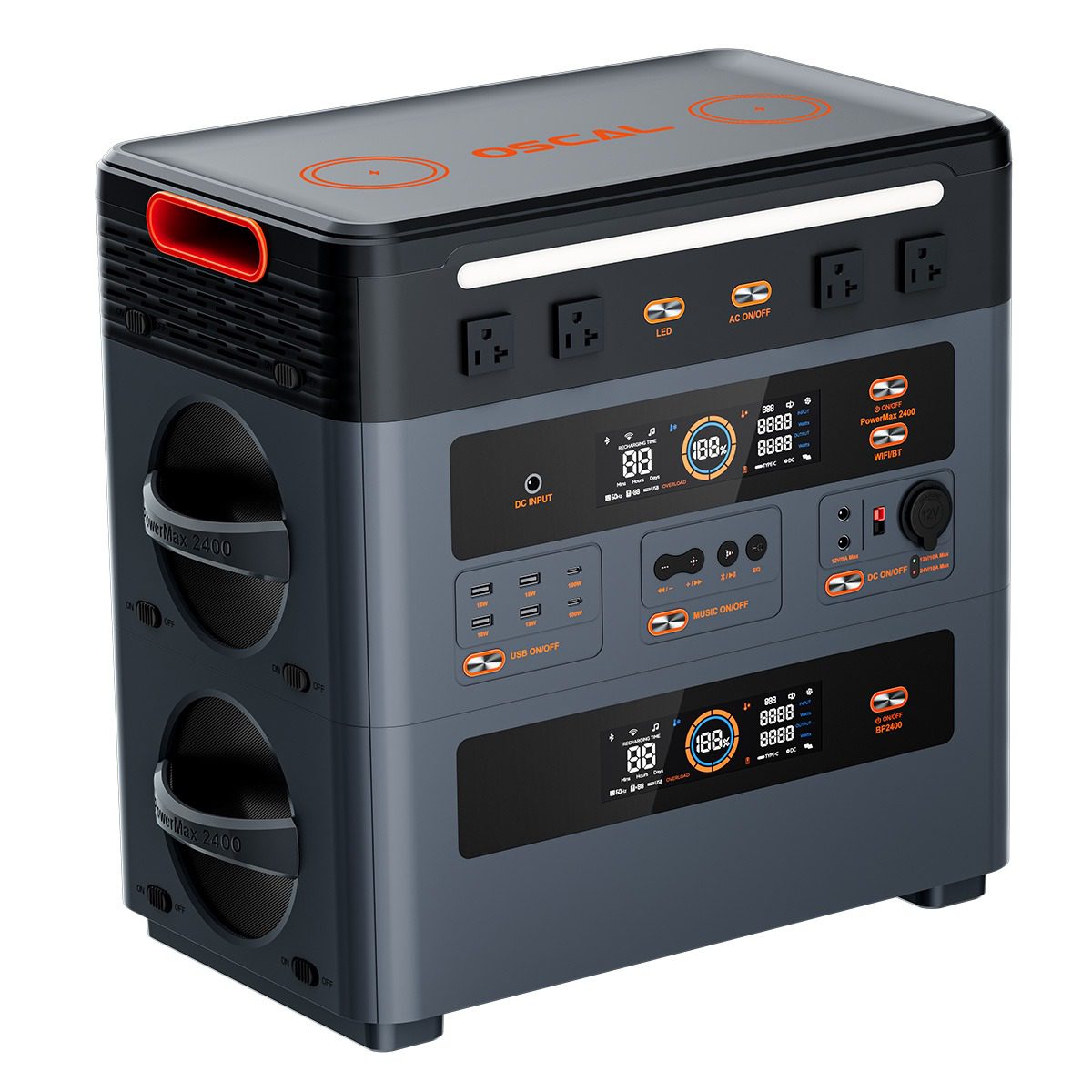

3. Innovative Cableless Stacking up Design
The seamless stacking design of the PowerMax 2400 and BP2400 provides space efficiency, reliability, and a clean setup for hassle-free power management.

4.Rapid Solar Charging
with 800W solar input, allowing for a charge of 0 to 80% in just 3 hours by sunlight.
with an input voltage range of 10-60V and a maximum current of 20A, You can connect up to 2 units of PM200 (200W panels) or 1 units of PM400 (400W panels) for efficient solar charging.

5. 5-8ms fast switch time UPS Function
Features an uninterruptible power supply (UPS) mode with a fast switch time of 5-8ms, ensuring seamless power transition during outages.

6. Built-in Dual Speakers
Enjoy immersive sound wherever you go: Whether you’re watching an outdoor movie, dancing by the sea, or creating a home theater experience, the PowerMax 2400 delivers rich, high-quality audio. In emergencies, broadcast SOS signals or deter wildlife for added safety.

7. 16 Versatile Output Ports
Includes a variety of outputs, such as 4*AC outlets, 2*Wireless Charging, Anderson Connector, 2*DC5521 ports, 4*USB-A, 2*USB-C, Car cigarette lighter, and more, ensuring seamless power anywhere.

8. 5 LED Light Modes
Stay safe with 5 lighting modes: Dim, Bright, Breathing, Flashing, and SOS, featuring a 5W ultra-bright LED for emergencies or outdoor use.

9. Smart App Control via Bluetooth & WiFi
Effortlessly manage the PowerMax 2400 with the smart app—adjust power, check charging times, and manage settings via Bluetooth or WiFi.

Oscal PowerMax 2400 Specifications

GENERAL

• Battery Capacity – 1872Wh
• Rated Power – 2400W (4800W Surge)
• Voltage – 120V
• Battery Type – LFP (LiFePO4 Battery)
• Battery Life Cycles – 3500+ Cycles to 80%
• Expandable Capacity – 1,872Wh-20,592Wh (PowerMax 2400 + Up to 10x BP2400)
• UPS Switching Time – 5-8 ms Fast Switch
• App Control – Yes (via WiFi & Bluetooth)
• Dimensions – 18.5″ x 11.4″ x 12.8″
• Weight – 53.8 lbs / 25.5 kg
• Warranty – 5 Years

Output Ports

• AC x 4 – Total 2400W
• Inverter Type – Pure Sine Wave
• USB-A x 4 – 3 x 18W, 1x 12W
• USB-C x2 – 2 x 100W
• Wireless Charging x 2 – 2 x 15W
• DC5521 Ports x2 – 2x 36W, 12V, 3A
• Car Cigarette Lighter Port x 1 – 12V/24V switchable, 10A, 120W/240W Max,
• Anderson Connector x1 – 12V/24V switchable, 10A, 120W/240W Max

Input Ports

• AC Adapter Input – 1400W Recharging Time: 1.45Hrs
• AC Input Voltage –  120V, 15A Max
• Solar Input – 800W Max, 10-60V, 20A Max Recharging Time:3Hrs
• Car Input – 120W Max Recharging Time: 15.6Hrs
• DC7909 Input – DC/Solar Charging: 10-60V, Rated Power 300W, 10A Max

Package Contents

• Oscal PowerMax 2400 x 1
• AC Charging Cable x 1
• Car Charging Cable x 1
• Solar Charging Cable x 1
• XT60U-M to DC7909 adapter cable x 1
• User Manual x 1
• Warranty Card x 1
