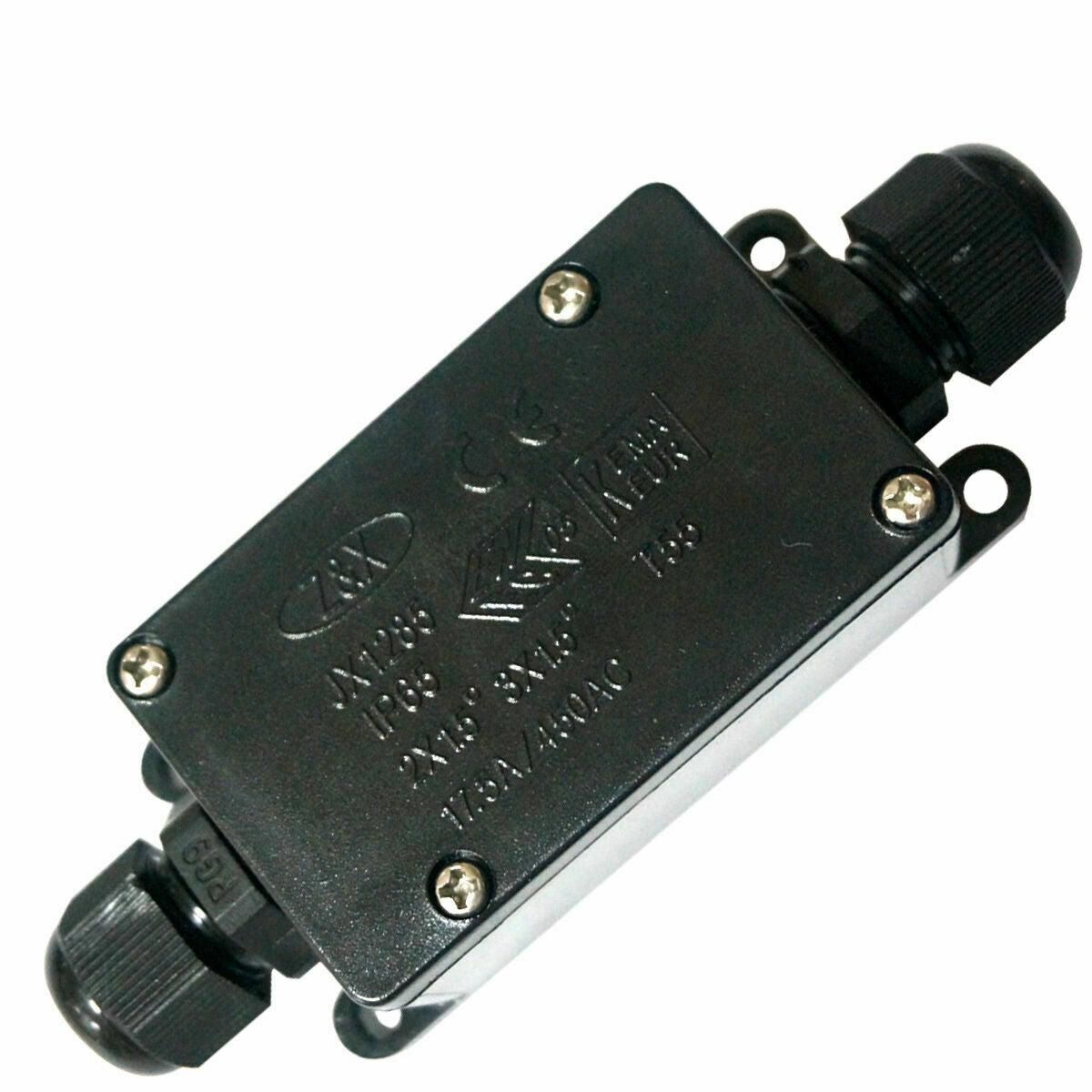

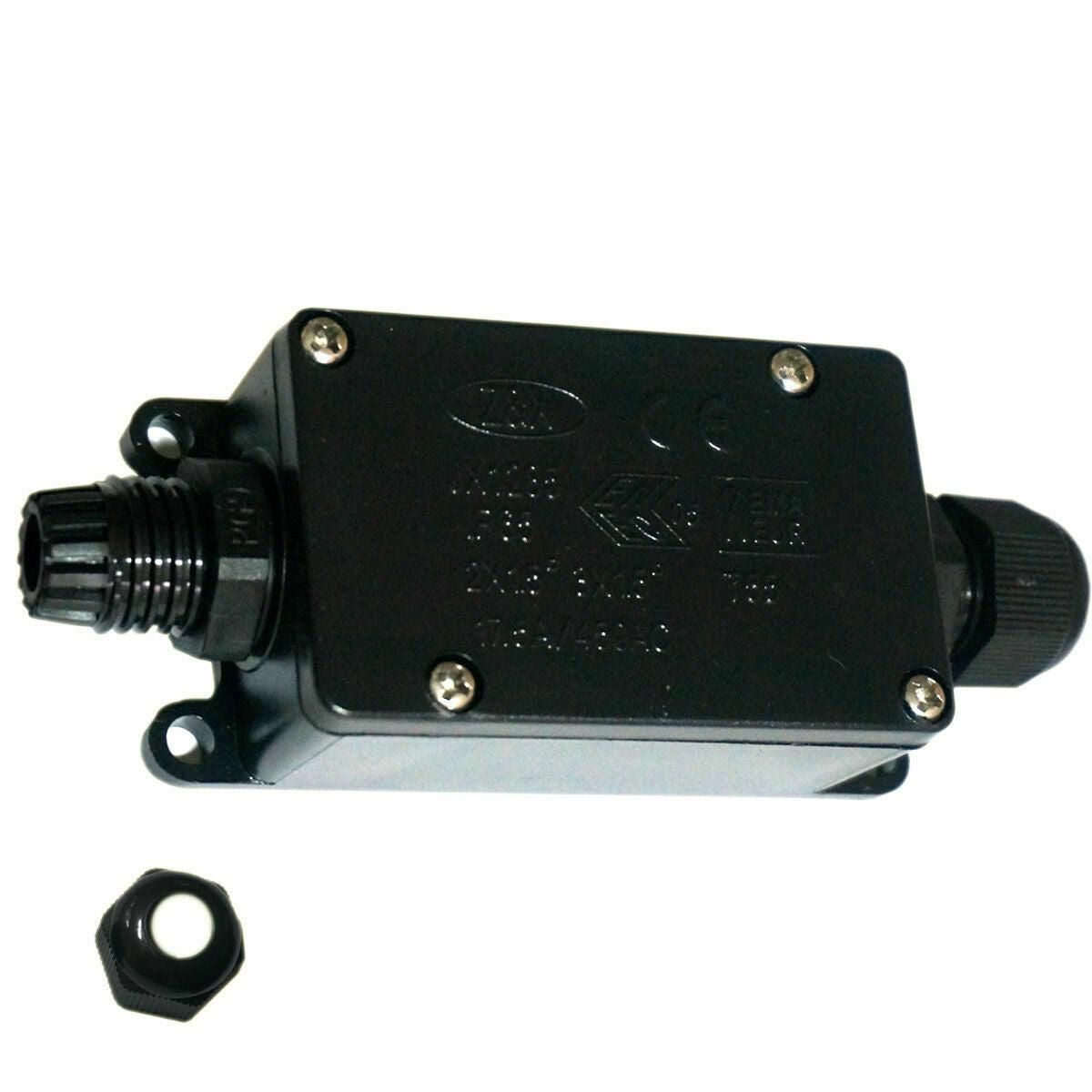

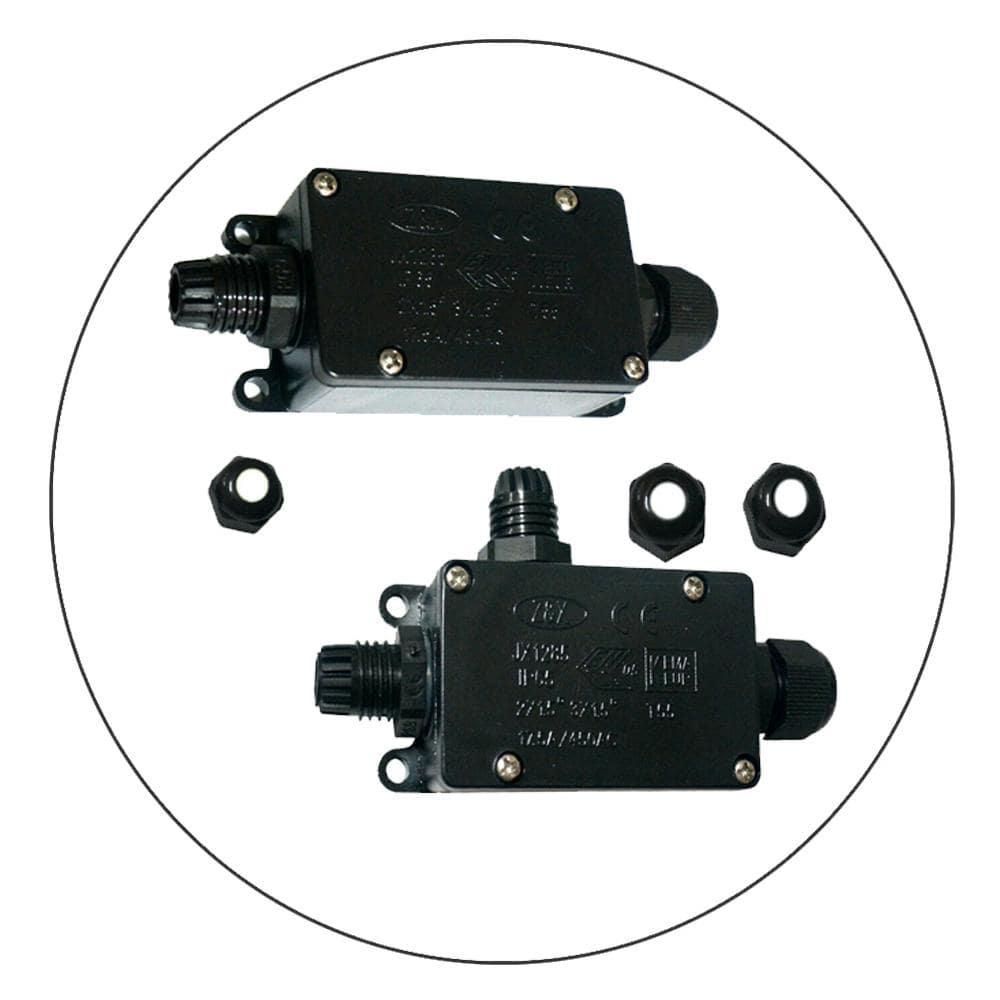

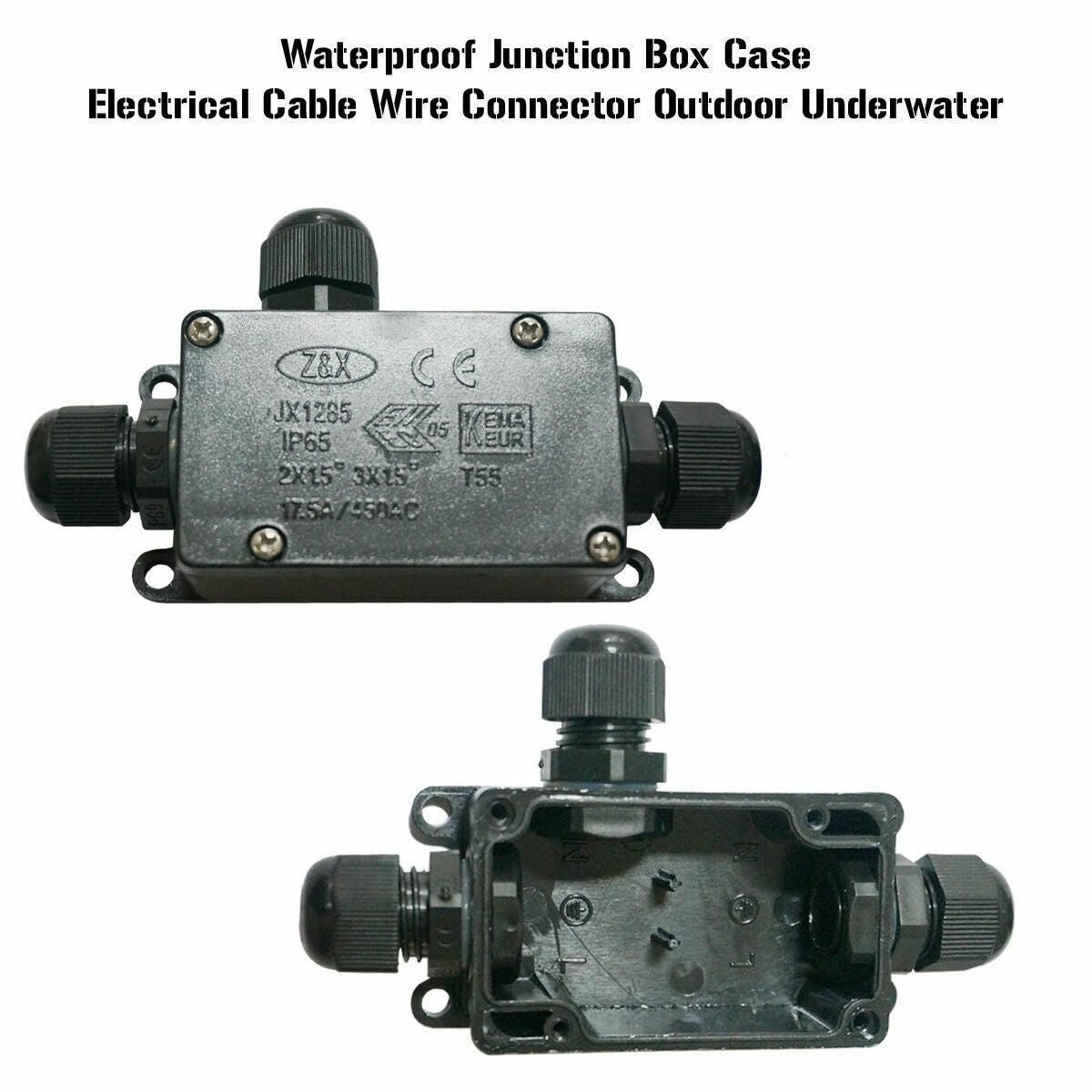

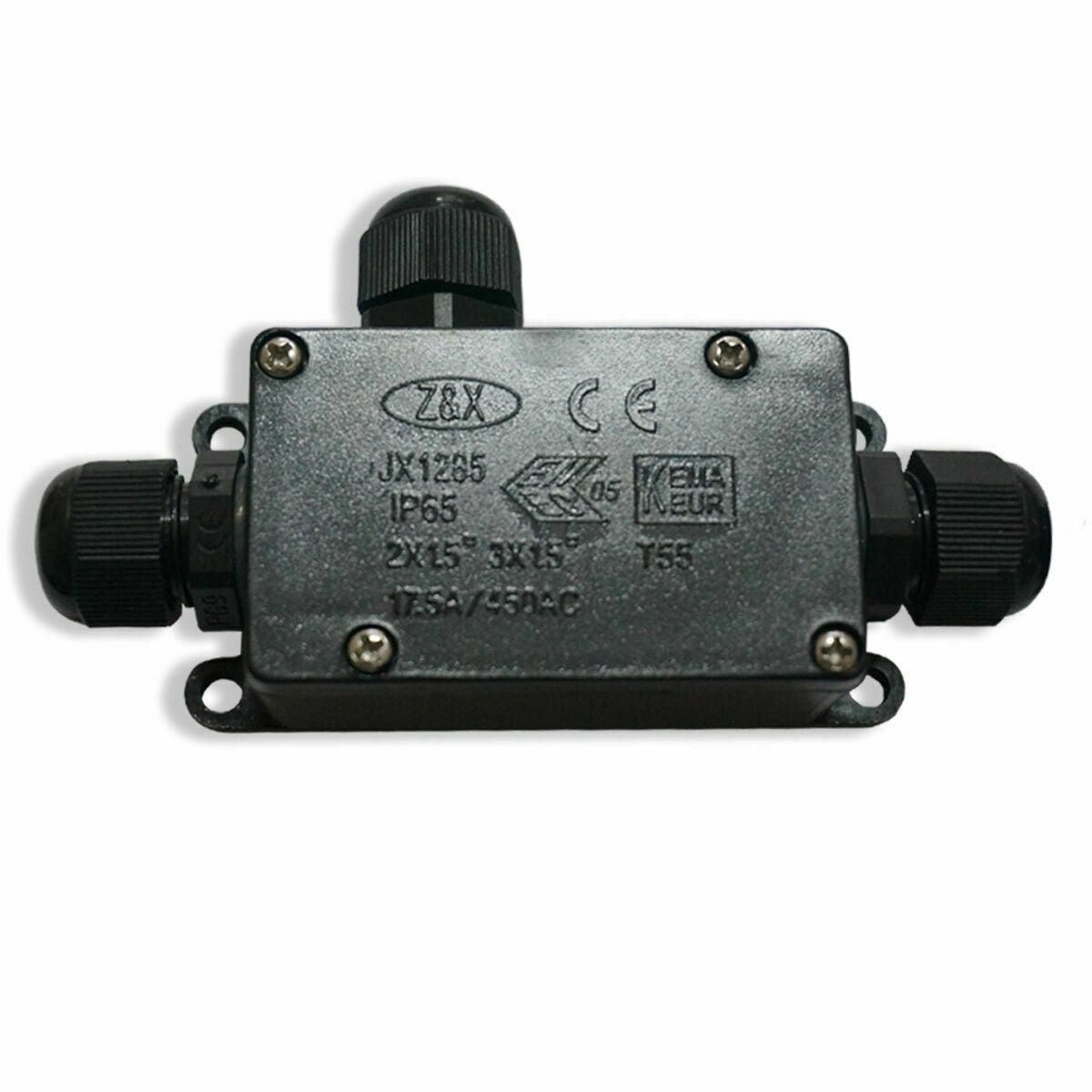

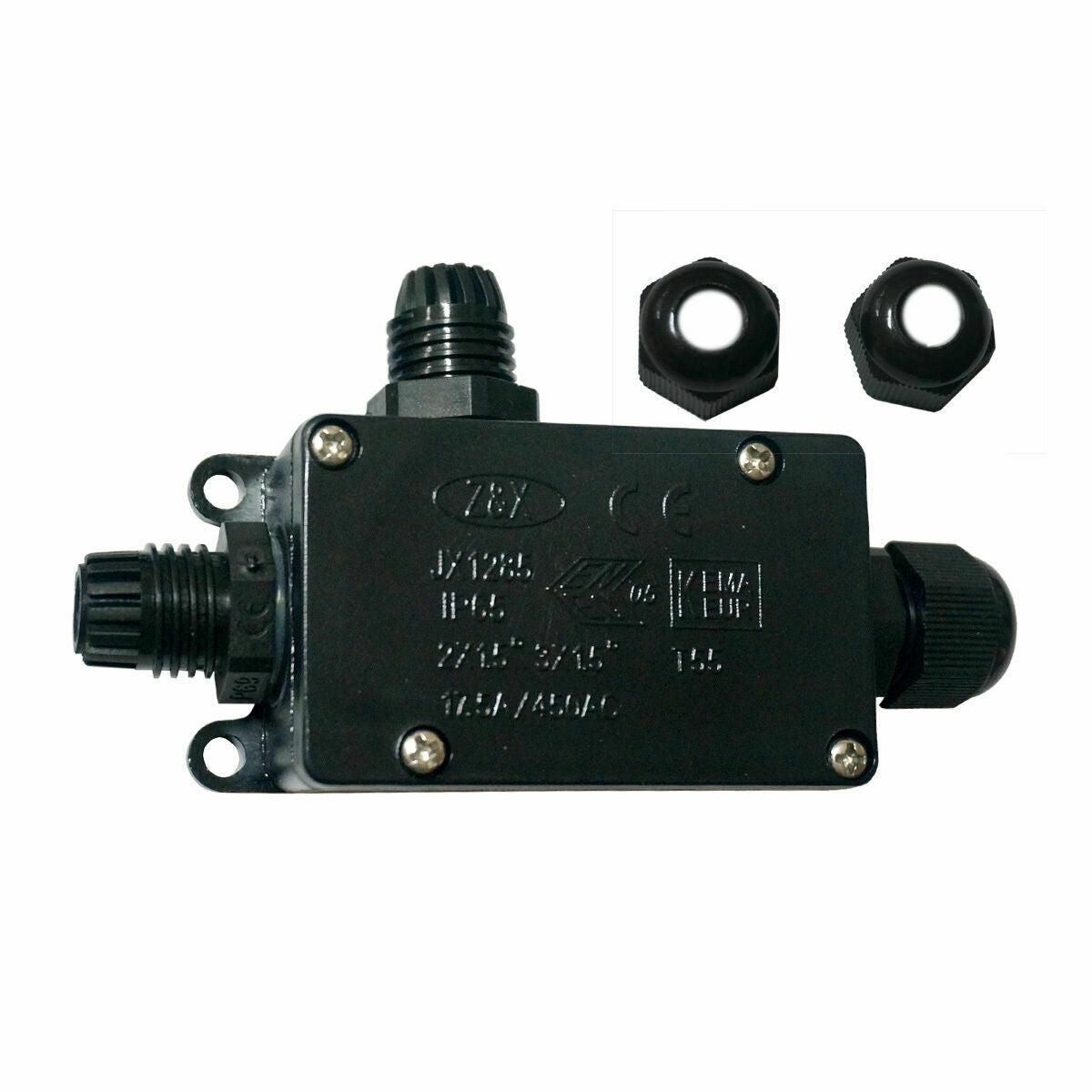

Underground Waterproof Junction Box

The Underground Waterproof Junction Box is designed for safe and reliable electrical connections in outdoor environments. This junction box features a 2/3 way plastic terminal strip and offers excellent protection with an IP66 rating. Its waterproof and dustproof capabilities ensure durability, making it suitable for various applications, including solar panel systems and outdoor LED lighting.

Weather-Resistant Design

With an IP66 protection level, this junction box efficiently withstands extreme weather conditions. It is waterproof, dustproof, and UV resistant, protecting your electrical connections from moisture and harmful rays. This feature makes it the perfect solution for outdoor installations, offering peace of mind in diverse climates.

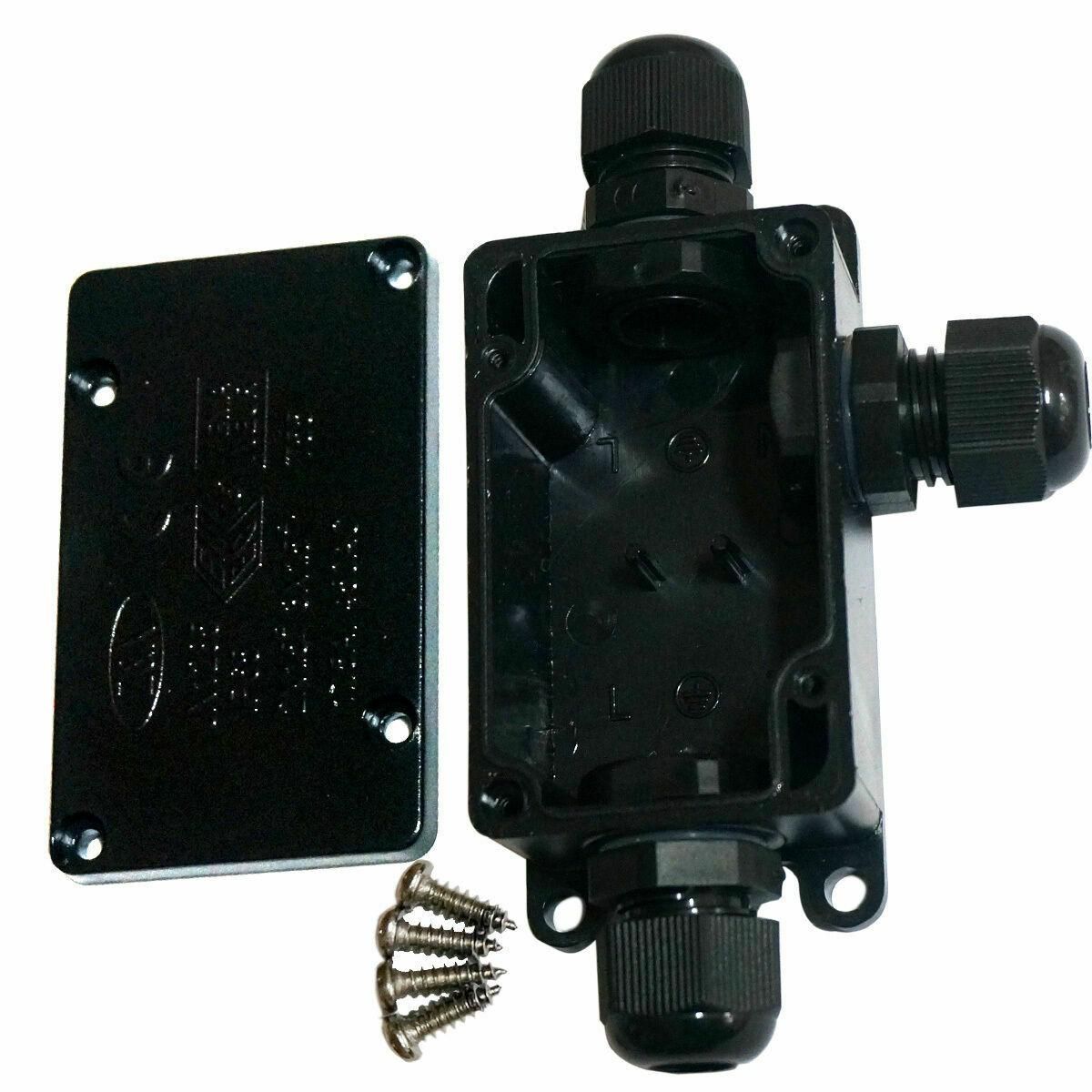

Easy Wiring for Convenience

Wiring is made simple with this junction box. The design enables quick and safe connections, ensuring ease of operation. Even for users with minimal electrical experience, the user-friendly setup process makes it straightforward to establish reliable connections without complications.

Wide Compatibility

This junction box is applicable to various scenarios, particularly for outdoor lamps and lanterns. It can accommodate different wiring configurations, making it versatile for residential and commercial installations. Whether you’re connecting solar panels or outdoor lighting systems, this box ensures compatibility with a range of applications.

Durable Materials

Constructed from PA/PC materials, this junction box is designed for longevity. The high-quality materials offer superior resilience against environmental factors, ensuring reliable performance over time. This durability reinforces the product’s longevity, making it a smart investment for outdoor electrical solutions.

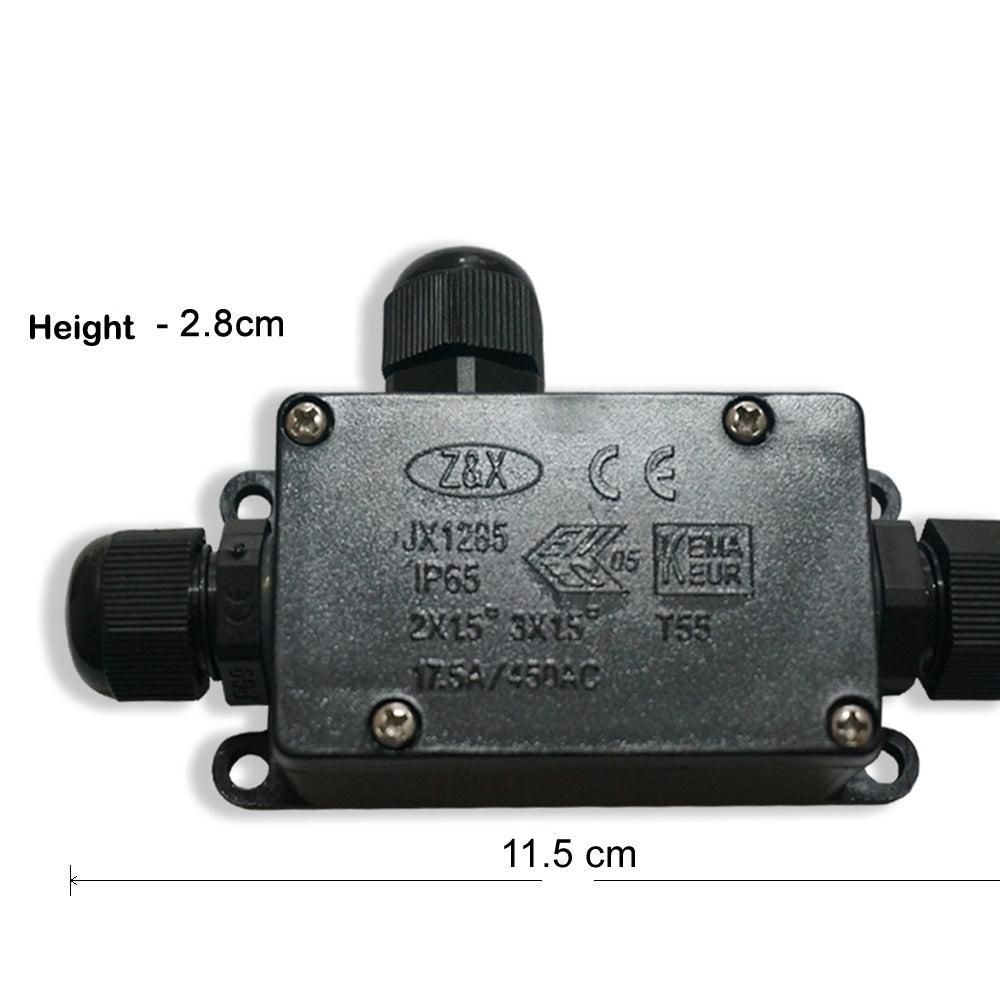

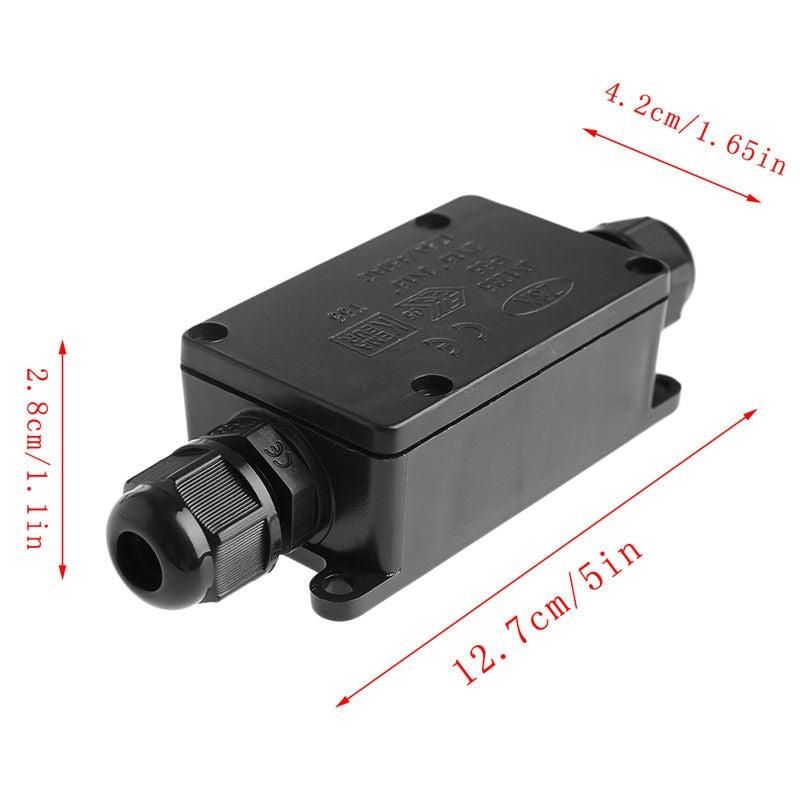

Specifications

To better understand the functionality of the Underground Waterproof Junction Box, here are the essential specifications:

• Product Name: Waterproof Connector
• Model: L20
• Matched Terminal: Standard P02 – D4/9
• Electric Current: 16A
• Voltage: 450V
• Cable Diameter: 4mm – 8mm
• Protection Level: IP66
• Material: PA/PC
• Certifications: CE, RoHS
• Cable Connector Type: Screw Fixed
• For Cable Max Diameter: 5-10.5mm
• Relative Humidity: 90%
• Color: Black
• Working Temperature: -35°C to 120°C
• Storage Temperature: -25°C to 85°C
• Atmospheric Pressure: 86 to 106kPa

These specifications highlight the versatility and robustness of this waterproof junction box.

Pros and Cons

Pros:

• IP66 Rating provides optimal protection against water and dust.
• Easy Wiring ensures a user-friendly installation experience.
• Durable PA/PC Materials enhance longevity and resilience.
• Wide Compatibility makes it suitable for various outdoor applications.
• Multiple Certifications (VDE, UL, CQC, RoHS) ensure safety and compliance.

Cons:

• Limited to specific cable diameter ranges, which may restrict use with larger wires.
• The 16A maximum current rating may not suffice for high-demand applications.
• Installation may still require basic electrical knowledge for optimal performance.

Conclusion

The Underground Waterproof Junction Box is an outstanding choice for anyone needing reliable outdoor electrical connections. Its robust weather-resistant design, ease of wiring, and compatibility make it ideal for diverse applications like solar panel systems and outdoor lighting. With excellent durability and safety certifications, this junction box provides peace of mind and functionality. Invest in this waterproof connector to ensure your outdoor electrical solutions are both safe and effective!
